View CS2
-
Power & Performance
130 Hp @ 3600 RPM
ISF 2.8 Cummins engine
280 NM Torque
-
Safety
Driver's Airbag / Assistant Driver's Airbag
Front Fog Lamp
Reverse Sensor
Body Sound and Light alarms
-
Comfort
180/190 mm Ground Clearance
Extra Width 2255 mm

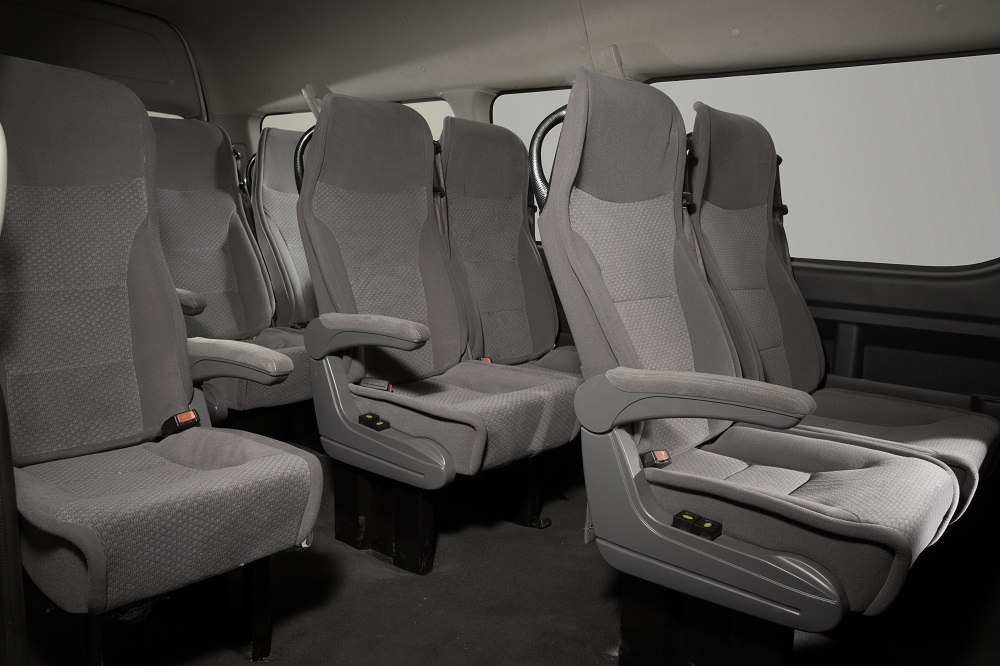

Foldable Seats with Headrest
-
Convenience
Air Conditioner
Integrated Music System
On-Board Diagnostics
Rs.68,00,000
Specification

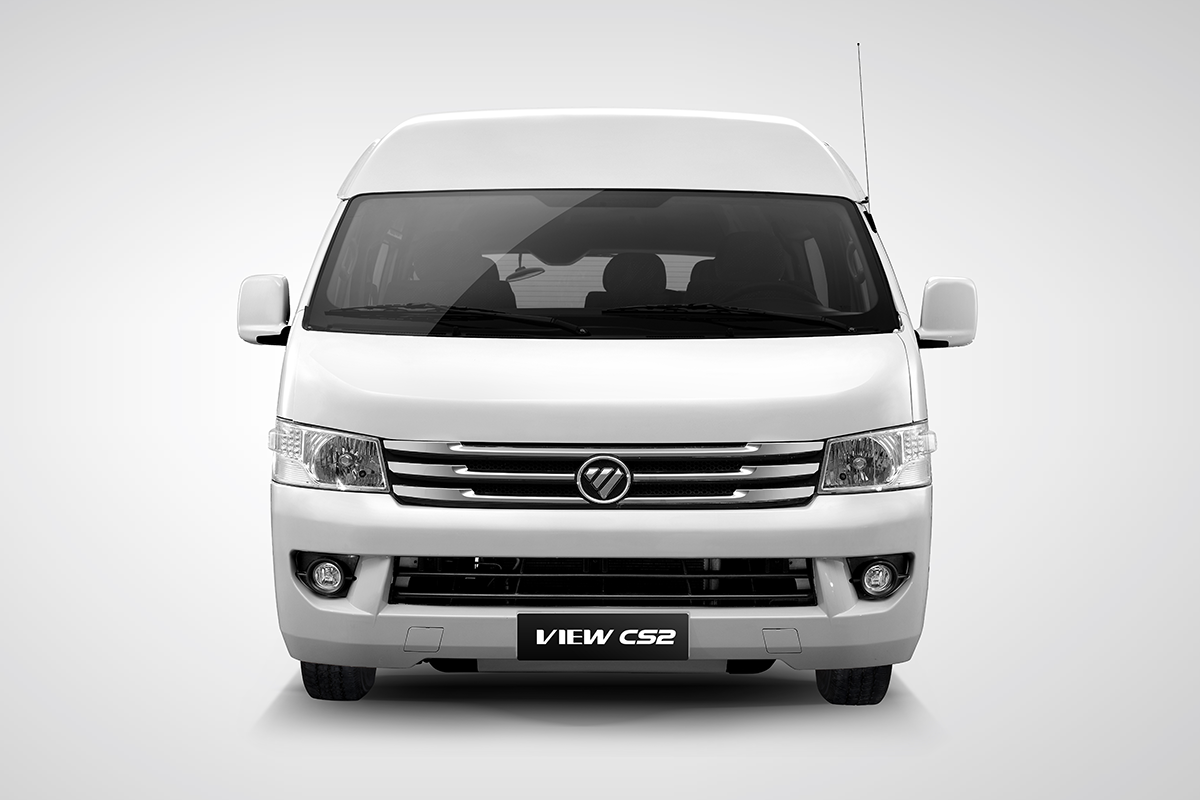

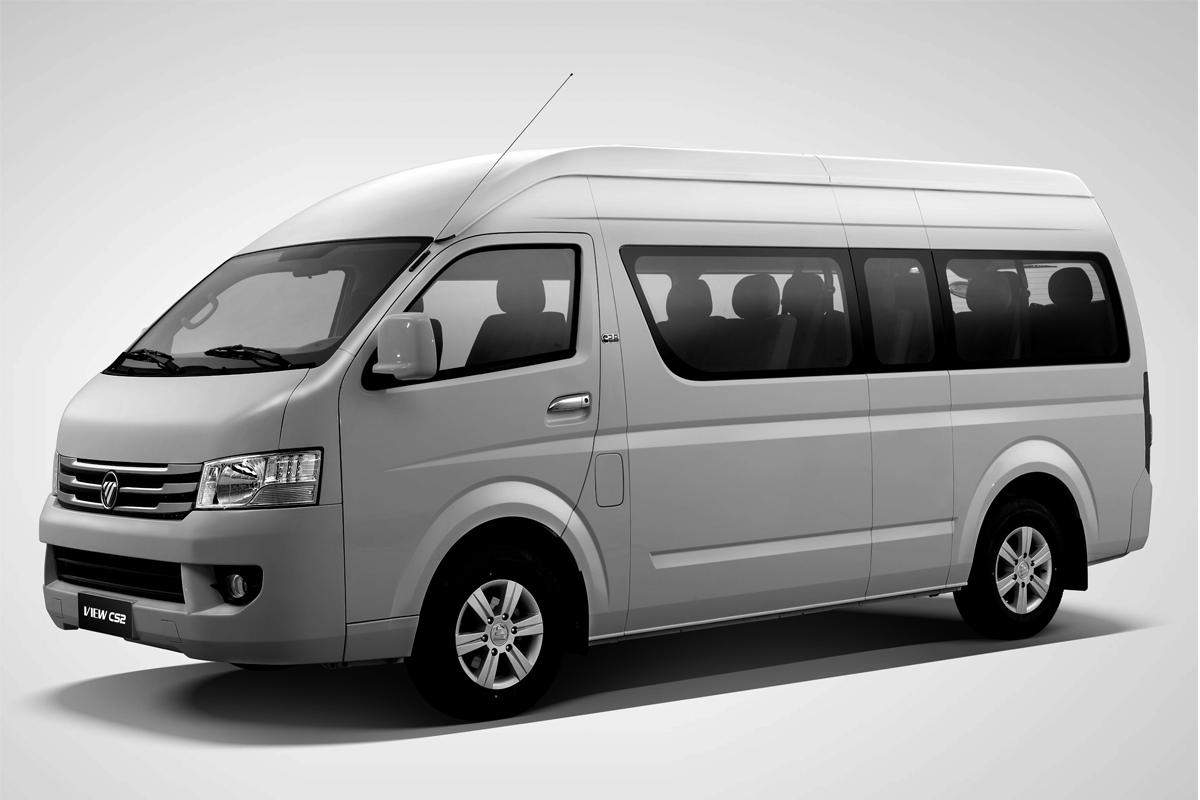

CS2 Van exterior 1

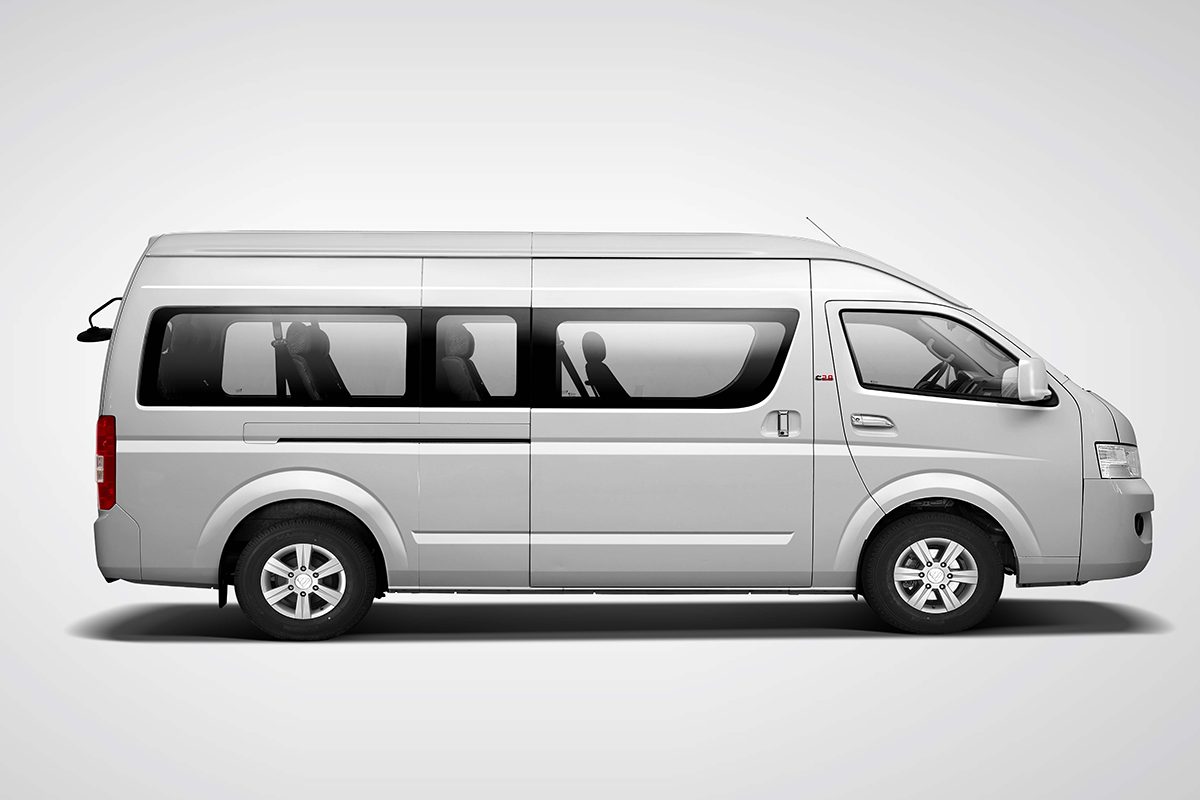

Van CS2 Exterior 2
Van Exterior 3

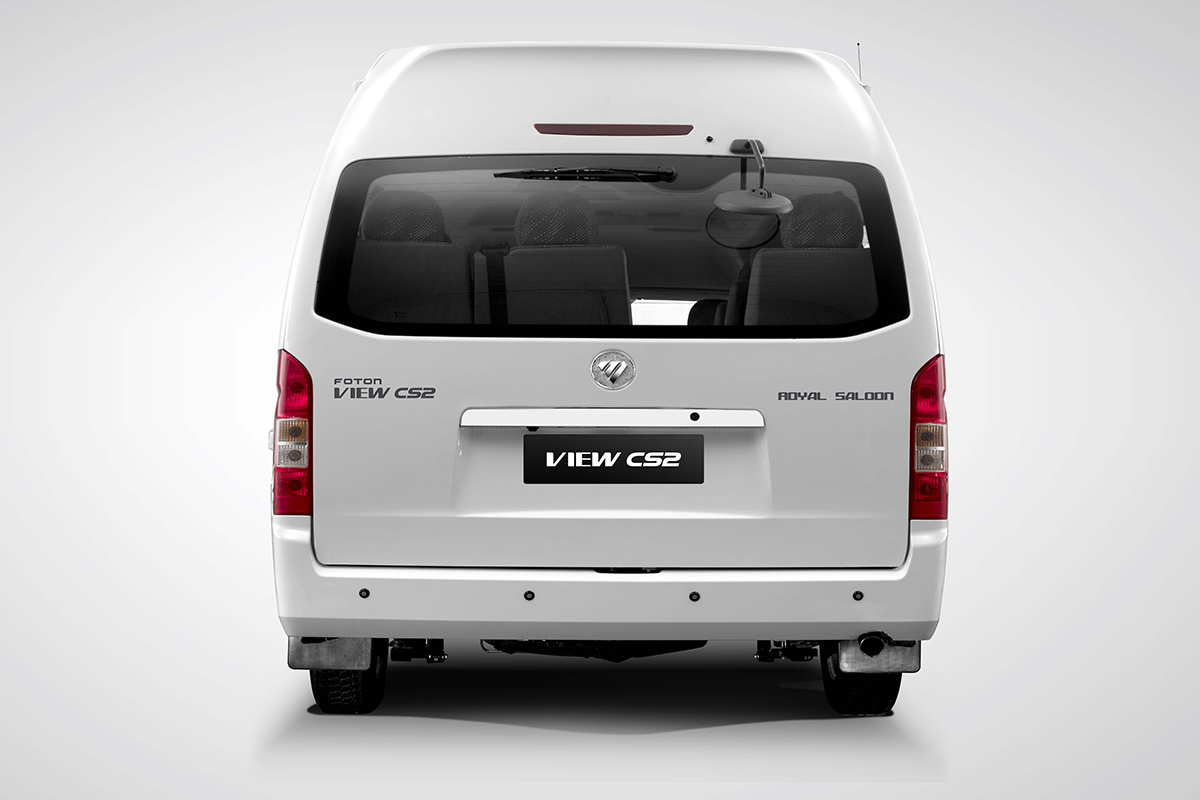

4

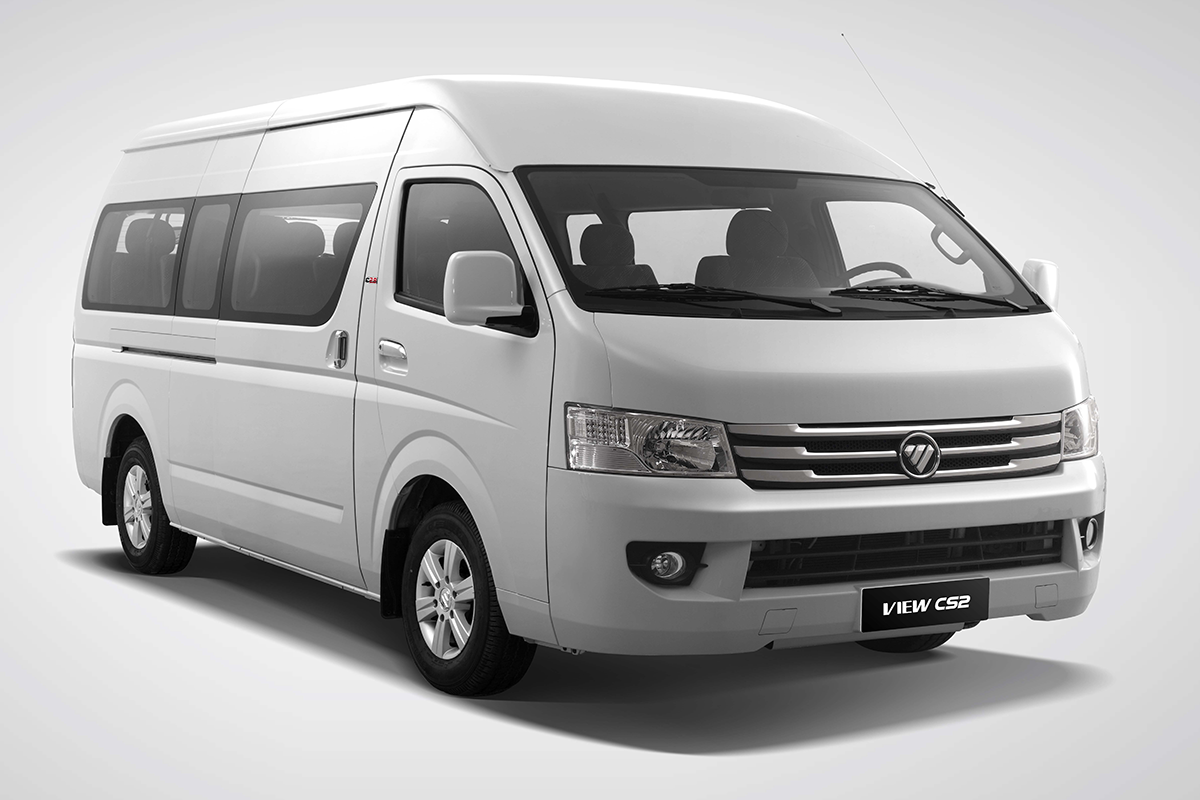

5

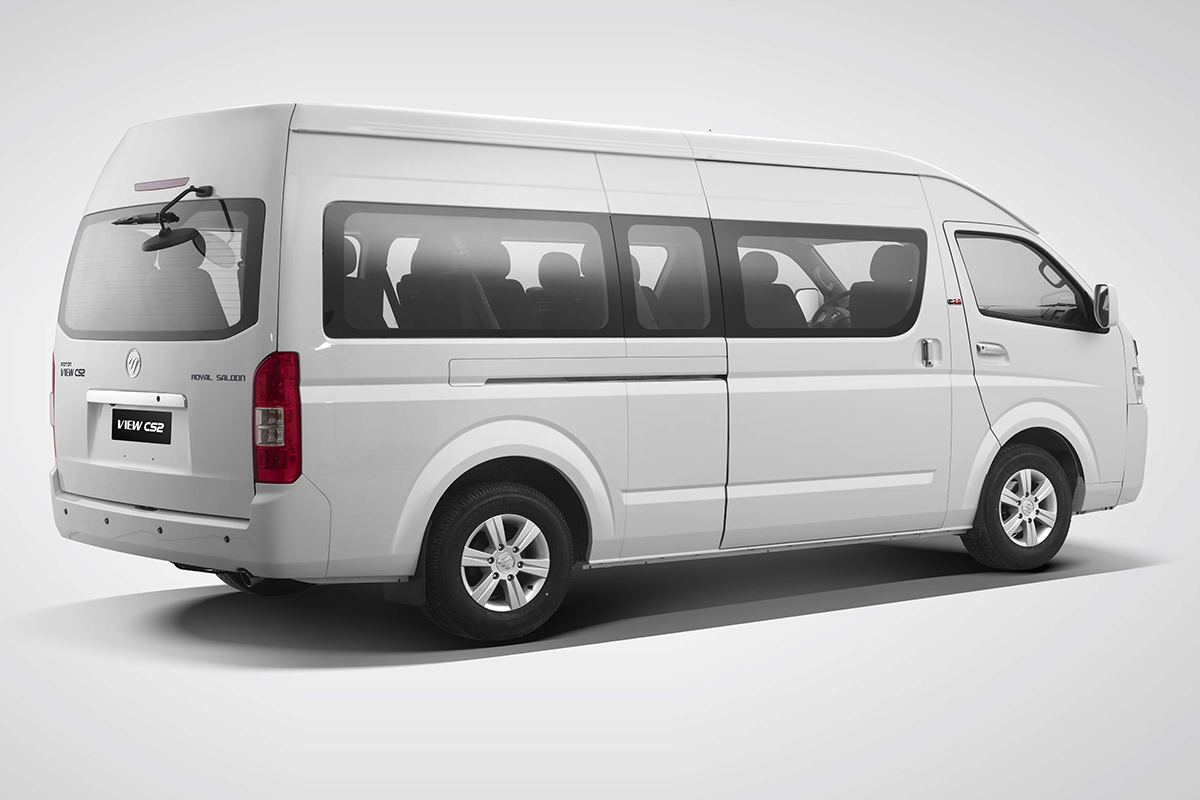

6
| Description | View Cs2 16 Seater |
|---|---|
| Length x Width x Height | 5600x 2255x 2285 |
| Wheel Base | 3110 |
| Ground Clearance mm (Laden/Unladen) | 180/190 |
| Kerb Weight | 2140 Kg |
| Gross Vehicle Weight | 3400 Kg |
| Fuel Tank Capacity | 70 Liters |
| Seat Capacity | 16 |
| Description | View CS2 16 seater |
|---|---|
| Model | Cummins ISF 2.8 Diesel Engine |
| No. of Cylinders |
4 |
| Displacement | 2776 cc |
| Max. Power Output | 130 HP @3600 rpm |
| Max Torque | 280 Nm @1400-2800 rpm |
| Description | View CS2 16 Seater |
|---|---|
| Gear Type | 5 Speed Manual |
| Steering Gear Type | Hydraulic Power Assisted Rack And Pinion |
| Drive Type | 2WD |
| Description | View CS2 16 Seater |
|---|---|
| Front | Double Wishbone Suspension Type |
| Rear | Leaf Springs Suspension Type |
| Fuel Tank Capacity | 70 Liters |
| Min.turning Radius | 6.2 m |
| Tires | 195/80 R15C |
| Wheels | Alloy |
| Description | View CS2 16 Seater |
|---|---|
| Airbags | Dual Airbags |
| ABS+EBD | • |
| Reverse Sensor | • |
| High-mounted stop lamp | • |
| Brake System | Front Ventilated Disc and rear Drum |
| Central Locking | • |
| Onboard Diagnostics | • |
| Description | View CS2 16 Seater |
|---|---|
| Independent air outlet for each row | • |
|
Reclining high-quality seats with individual seat belts and headrest |
• |
| Rear A/C and integrated air outlet | • |
| Power Steering | • |
| Power windows | Front |
| Audio Devices | AM/FM Radio +AUX+Bluetooth |
| Speakers | 4 |
