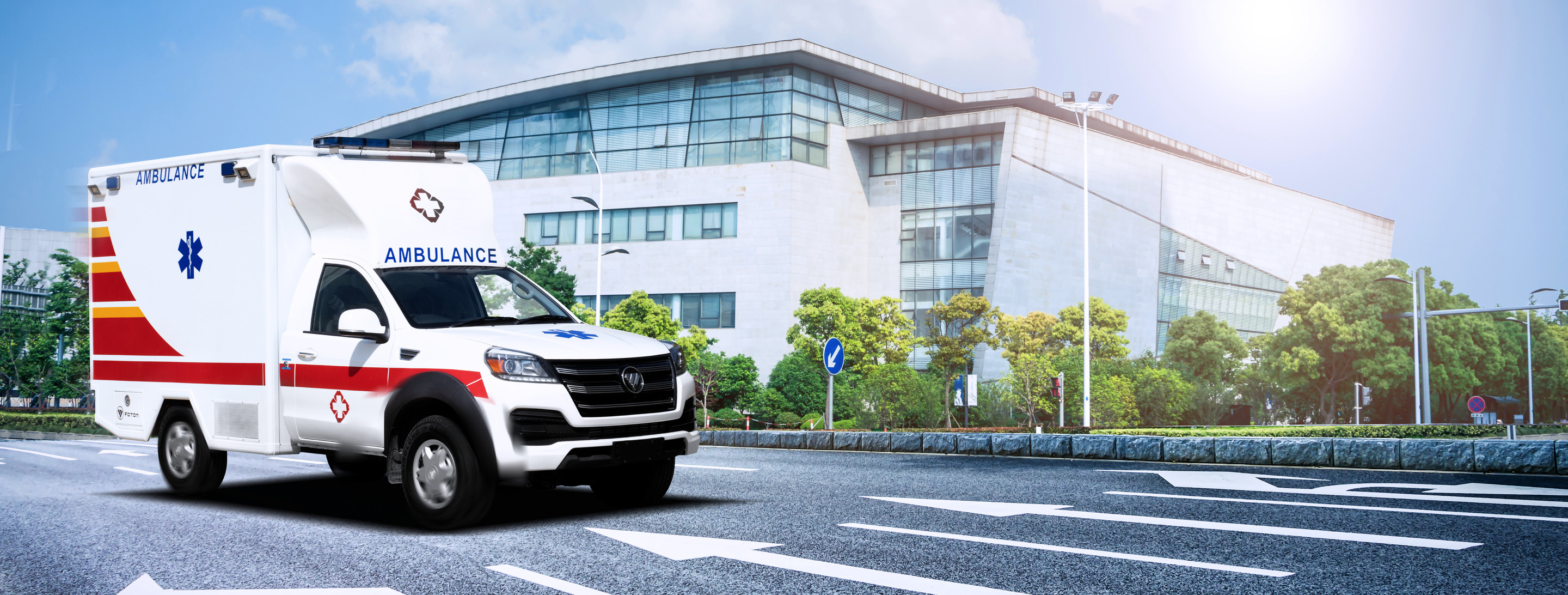

Ambulance 4 x 4
-
Power & Performance
Hydraulic power steering
Energy absorbing steering column
Can fold up direction string column
-
Safety
Front row safety belt and three-point seat belt driver and assistant driver
Acoustic equipment: Radio + USB + AUX, Central storage box, Alarm, cd, power outlet
Lights system: Headlight, front fog light and high mount brake light -
Comfort
Front suspension: Double wishbone, coil spring
Rear Suspension: Small leaf spring with live beam axle
Steering: Hydraulic power assist with rack and pinion -
Convenience
Woven seat
All of belts Front wiper and washer Available
Sun plate 2
Specification
Ambulance
| Description | Availability Option |
|---|---|
| Outer dimension(mm) | 5130*1880*1860 |
| Wheelbase(mm) | 3105 |
| Total mass(kg) | 2870 |
| Max speed(km/h) | 130 |
| Combined fuel consumption(l/100km) | <11.3 |
| Climb slope angle(%) | 35 |
| Min ground clearance(mm) | 210 |
| Description | Availability Option |
|---|---|
| Woven seat | Available |
| Seating capacity | 5 |
| All of belts | Available |
| Carpet PVC | Available |
| Front wiper and washer | Available |
| Sun plate | 2 |
| Outer rear view mirror | Manual |
| Center control door lock | Available |
| Electric window | Available |
| Description | Availability Option |
|---|---|
| Front suspension | Double wishbone, coil spring |
| Rear Suspension | Small leaf spring with live beam axle |
| Steering | Hydraulic power assist with rack and pinion |
| Brake system | Front disk and rear drum brake |
| Transmission | Five speed manual transmission |
Chasis system power steering and adjustable column
| Description | Availability Option |
|---|---|
| Hydraulic power steering | Available |
| Energy absorbing steering column | Available |
| Can fold up direction string column | Available |
| Adjustable angle of the streering wheel and leather | Available |
| Shift hand ordinary PU | Available |
| Wheel assu tyre 265/70r16c and aluminium alloy | Available |
| Brake safety device ABS + EBD | Available |
| Description | Availability Option |
|---|---|
| Front Rear Bumper | Available |
| Safety belt | Front row safety belt and three point seat belt driver and assistant driver |
| Air Bags | Dual Airbags |
| Rear attachment | Rear mirror |
| Lights system | Headlight, front fog light and high mount brake light |
| Acoustic equipment | Radio + USB + AUX, Central storage box, MP3, Alarm, cd, power outlet |

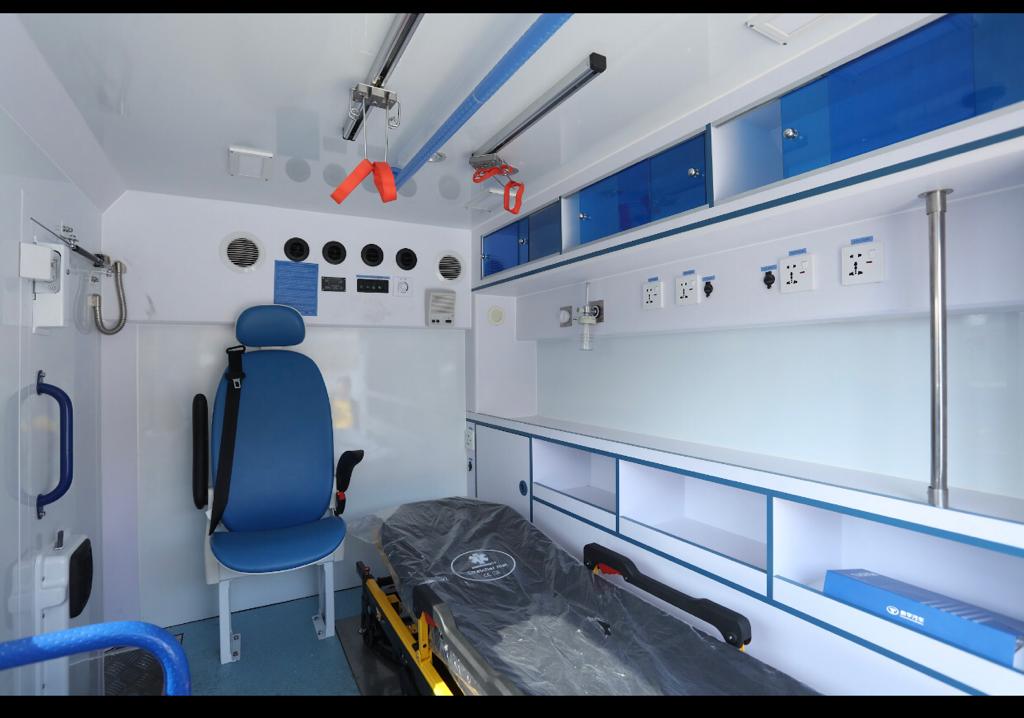

| Description | Availability Option |
|---|---|
| Alarm Lamp (standard 100w, flash LED | Available |
| Snail Lamp (whirring) | Available |
| Fiberglass Pressed film interior + partition(with sliding glass) | Available |
| Ambulance mark | Available |
| Cross Mark | Available |
| Color bus | Available |

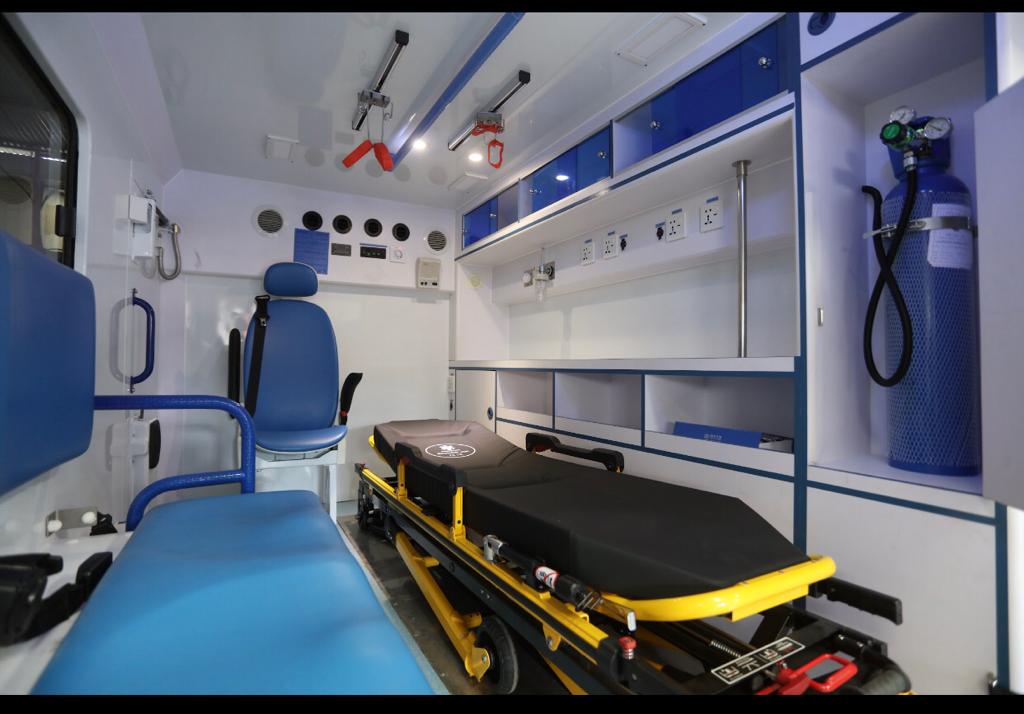

| Automatic stretcher and Oxygen bottle (10L) | Available |
| Front medicine cabinet and left medicine cabinet | Available |
| Ultraviolet rays lamp/td> | Available |
| Double side ventilator | Available |
| Window film | Available |
| Fire extinguisher and bracket(1kg) | Available |
| Slide suspension | Available |
| LED lightening light | Available |
| PVC floor | Available |
| The seats can be fold and used to see patient | Available |
| The separate seat used to see front | Available |
| First aid equipment | Available |
